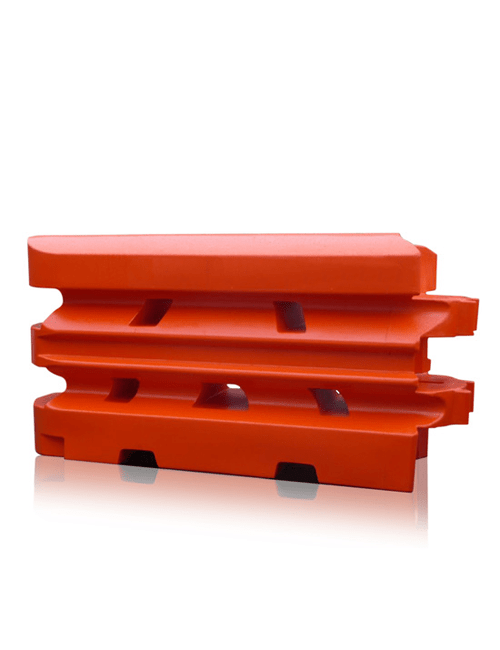

Ricochet TL2 Barrier

The Ricochet TL2 Safety Barrier and Terminal End is a rotational molded product manufactured from LHDPE (Linear High-Density Polyethylene) polymer.

These Barriers can be connected together by using the Ricochet galvanized pin to form a longitudinal straight or curved line for protection and traffic flow direction for all road and construction sites and situations. Barriers are designed to be filled with water in accordance with the TL2 MASH standard they are certified for.

Your Title Goes Here

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Procedure
Turn Around Time: Available under immediate urgency or months in advance.
Cost: Costs depend on duration.

Location for transport and how many heads are required (2-way set / 3-way set etc.).
How it Works: Let us know where you want it and we will deliver.
Specifications
Dimensions: 2000mm length (pin to pin length is 1700mm when inter-connected)

580mm width, 1020mm height

Weight: Barrier: 62kg (empty), 620kg (full)  Terminal end: 42kg
Minimum Length: 61m  (2 x end treatments (each 2 yellow sections + end cap) and 32 x orange barrier sections)
Clear Area: Ground conditions must be of satisfactory compactness and levelness does not exceed 10%
Grade or Placement Restrictions: Ground conditions must be of satisfactory compactness and levelness does not exceed 10%
(1 vertical, 10 horizontal) for both longitudinal and cross slope. Must not be installed on top of or in front of any curbs or channels.
Deflections: 2.27m (50 km/h, 2270kg pick-up, 25° angle)

3.50m (70 km/h, 2270kg pick-up, 25° angle)
Water Fill Capacity: 600L for each barrier
