Barrier Guard 800

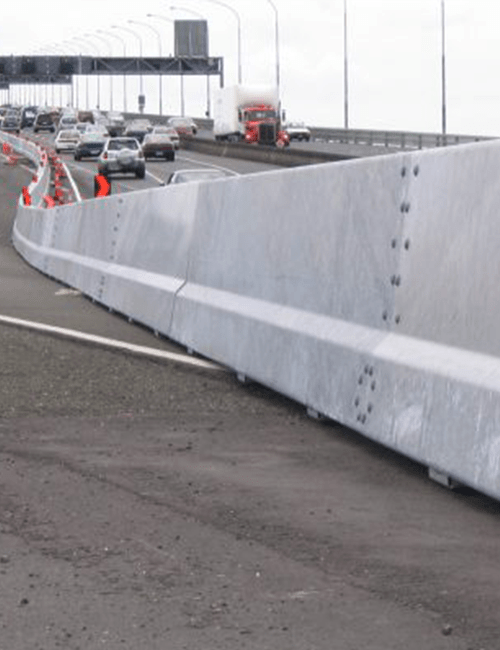

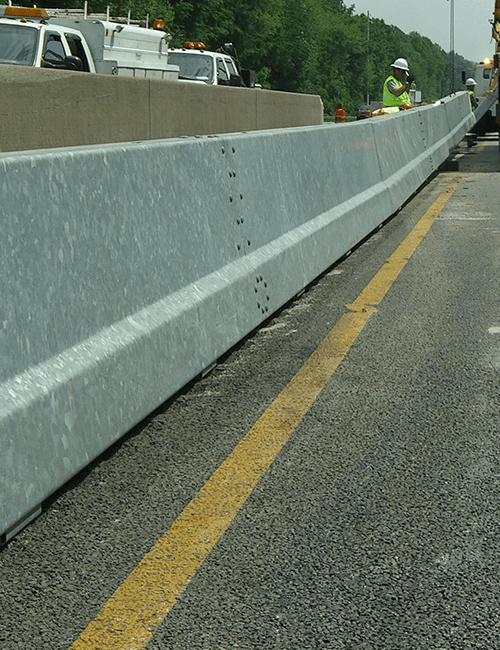

The BG800 Steel Barrier System is a temporary steel barrier system comprising 6m or 12m sections fabricated from galvanised steel panels joined using a proprietary connection system, terminating with ground anchored end sections protected by the use of a crash cushion. BG800 is a deformable vehicle restraint system acting as a continuous beam, anchored to the ground at the end of each run through specially designed terminal sections.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
|Turn Around Time:
|Available under immediate urgency or months in advance.
|Costs depend on duration.
|How it Works:
|Let us know where you want it and we will deliver.
|6m or 12m length per unit, 540mm width (base), 235mm (top), 800mm height.
|1080kg (12m unit).
|18m with no accepted crash cushion connected to the end terminal.
60m including end terminal.
|Grade or Placement Restrictions:
|Not to be installed on the ground of cross slope greater than 8% (1V:8H). On slopes greater than this, approval is required from the road controlling authority.
|Galvanised steel finish.
